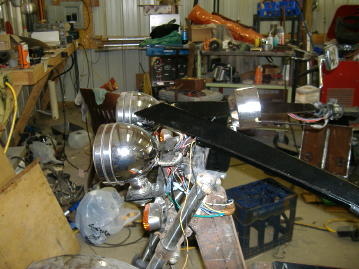

I have started to wire the turn signals and Head lights. This picture has too much background clutter for you to see the lights. I will take a picture on the outside later.

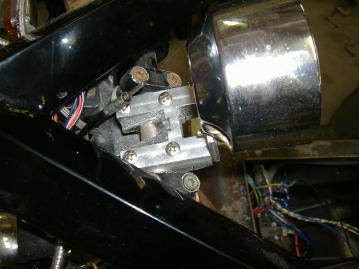

This shows my speedometer mount. I machined it out of aluminum. I am going to have it anodized.

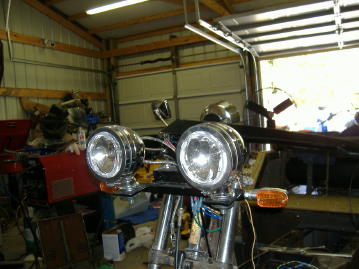

Here is another shot of the head lights from the front. You still can't see the mount.

This is a view of the rear pannel, showing the tail and brake lights. There will be 4 diamond shaped lights in the rear. They will be used for the brakes and the tail lights. I added a resistor in line so they could be used for both brake and tail light. They are 2 wire LED lights.

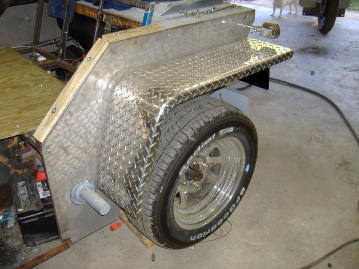

I took one long diamond tread fender and cut it in half to form the rear fenders. I will use fender welt between the body and the fenders, as they have a rounded edge next to the body. (They are not square on one side). Some fenders have a radius on the outside and a flat side on the inside. I had to use the double radius fender so I could cut in half and reverse for the other fender.

This is a brace for the fenders. I made one for each side and installed them near the rear to lend support.

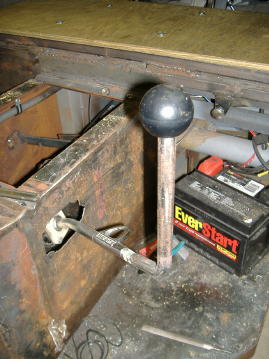

Here I am experimenting with adding an extension to the gear shift. I like it real well if I can just get it a little more stable. It comes up beside you and is real easy to shift. It is not set in concrete yet. ha

Here you can see the gas tank that I mounted behind the seat. It is an 8 gal. tank. It is between the seat and the motor. I don't really like this but with the insurance companies not wanting the tanks outside the bodies I guess, it will have to do.

This is a shot of the fake gas tank. It will be used for the indicating lights, gauges etc.
Thats it for now. Thanks for dropping by. Check back later to watch the progress of the building of this, my second trike.
