Visit The MSTS 2x2 Route Standard Tips and Tricks for even More info!

Want to select several terrain tiles at once to put texture patches on? Press SHIFT and select and drag, this will select many of them then hit the # key of the patch you want to place down and volia! They will all be textured . By RailroadKing

How to do a Reverse Loop: By Tom Goodrick

Keyboard Keys:

You can use Ctrl C for and Ctrl V for Copy and Paste objects in the Editor. You can also use the Alt Key on the Move and Rotate Tools to Lock a movement. It takes practice, but you’ll see what I mean. Can also use the NumKey Arrows for the Move and Rotate Tools ( Very Usefull ).

T - Hit the T key to flip the track piece around. Like from a left turn to a right turn, also works on switches to get the correct position.

 Hit the Y to form the terrain around your track. Like use the Rotate tool to raise or lower the track and hit the Y. The terrain will then form to the track piece.

H - Hit the H to put the selected object at ground level, you can also hold it down while moving objects.

W - Toggles wireframe on and off, useful sometimes...try it!

F - Flatten the current selected terrain

To rename the sidings or platforms, just select them (you need to have the select object tool)then right click and you should be able to select properties. Then you can rename them all you want. Thanks RailRoadKing

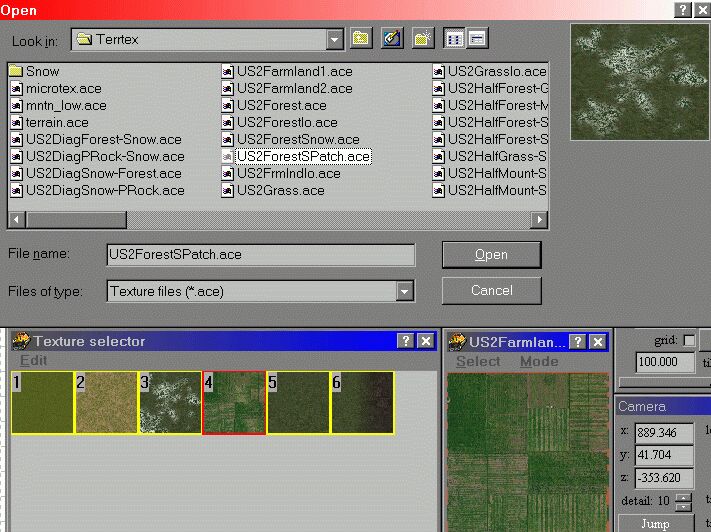

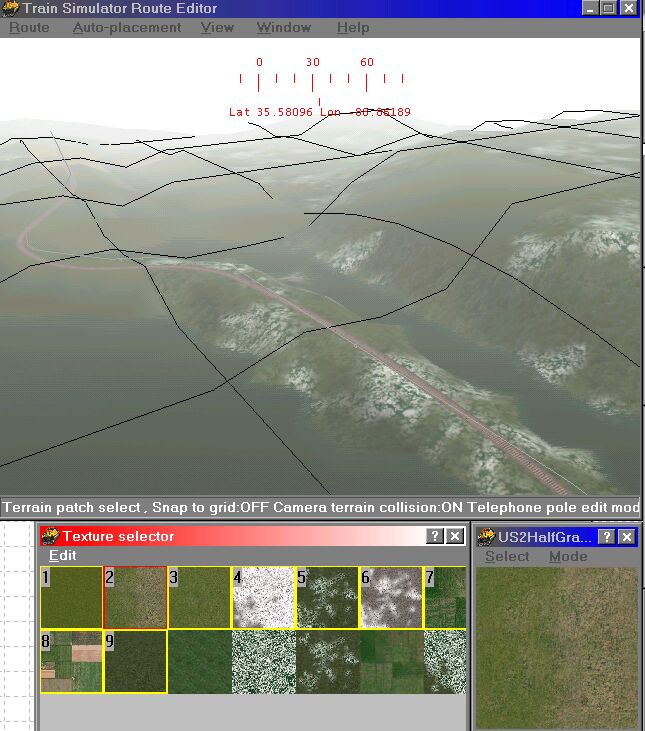

To Add Textures to Your Route, Copy the Files from the folder Terrtex of any Route you want into the Terrtex folder of your Route, then when you open your Route in the Editor, then select Window, then Texture and Texture Select. Then hit the Edit/Insert on the Texture select window to add textures to the preview.Click HERE for a Screen Shot. Then select the tool and you’ll see a grid pop up on the terrain. Click in the block of your choice and hit the number of the texture you want to place in that block Click HERE for a Screen Shot
