Trace out a bottom
board at least 1/4" thick and cut it out.
|
|

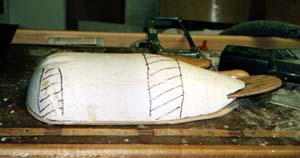

Bottom board glued
on and the hard corners that need to be rasped off indicated
by the hash marks. Note I cut my bottom board rough, glue on
and then sand to fit on the sanding station |
 |
 |

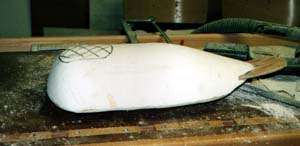

Body finished. The
hashed out area is where the head will go and will need just
enough rasping to flatten for the head.
|
|

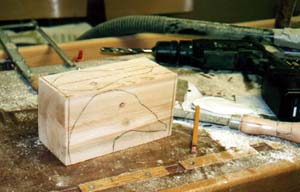

Scribe a pair of square
lines on the top and side to line up your pattern on. Transfer
the pattern and drill out a hole the size of the eye. (the Mike
Harde method) If you are not using glass eyes, drill a small
hole as a reference for eye location. Head patterns are on page
6
Note: The
heads for Frankenscoters focus on simplicity and durability.
This bills and simple shaping are what they are intended to look
like.
|
 |
 |
Cut the head out
top side first and then put a few drops of hot melt glue to reassemble
the head
|
