Welcome to Tuoppi's Toyota-webpages Click reload (if needed) - these web-pages are growing all the time!!

These pages are dedicated for those Toyota owners and enthusiaists who are interested in performance and modifications over the world. Last update: 30th of the October 2000

Site map
Suomenkielisille sivuille/in finnish

Car sales brochures My car brochures for sale. I also will exchange these brochures to Toyota-brochures. (30.10.2000) NEW!

Toyota-talk forum(BBS) Here you can discuss anything what comes to Toyotas performance modifications..

Toyota-information This section contains universal, technical information of Toyotas.

My previous cars My old cars, Toyotas..

Finland, the place where car owner is a criminal..

Me, Tuoppi

Links, Very good Toyota performance links

Stuff wanted/for sale There is my own buy/sell advertisements

World rallies There is links to every single race of rally world championship. You can "watch" as finns will win the rallies on-line :)

Suomeksi (in Finnish) Samat sivut Suomeksi. Löytyy myös Suomenkielinen keskustelufoorumi.

News and updates

• Car sales brochures -listing. There is my car brochures for sale.
  I would be glad to exchange these brochures to Toyota sales brochures. I will buy also Toyota.brochures and original Toyota-repair manuals.
• New MESSAGE FORUMS opened! (26.03.2000)
• "I buy and sell"-section upgraded.
• Links upgraded with 4A-GE turbo Carina (500 hp) and exploded views of MR2 mk1. Also Martelius-Exhausts website-address added. (28.03.2000)
• Toyota's performance-engines Features the most popular performance-engines by Toyota 2T-G, 3T-GTE, 18R-G, 4A-GE, 4A-GE 20V, 4A-GZE
• World rallies There is link to every sigle race of rally world championship. You can "watch" those rallies on-line.
• Racing four-link and Watt's linkage The principle of four-link (actually it is five-link), and some construction tips.
• The new Toyotas There is new Toyota models featured; MR-S, Celica, Caldina and Altezza.
• Psi to Bar -conversion table Easy chart. The name tells it all
• February 19th Corolla #E3#-series information added.
• 18-19th of February Corolla #E7#-series technical and performance mods section added. Group F-information added.
• 18th of February:Toyota information section added.
• February 18th 2000 links section updated with the addresses of the best Toyota part-vendors (English/Finnish).
• I will update this page with the old Toyota owners manuals (Celica TA-22, Carina TA-12, Corona, Corolla #7#..) in the the PDF-format as soon as it is possible to me.
• Pages were established in the 16th of February 2000.

Notice from the webmaster!

If somebody of you have personal experiences and tips on turbocharging 4A-GE or HAS PARTS FOR SALE that i might be needing of for above mentioned project, please drop me a line by my e-mail: tuomas.kononen@kolumbus.fi

Any help will be very much appreciated!

Toyota Corolla DX (KE70) -82. 1600 16V Twincam (4AGE)

Here is my car. It's quite ugly because i cannot afford yet a better one. Anyway, it's best characteristics are hidden under the trashed looks. Wild ride in the winter.. Why the hell i didn't buy the spiked tyres.... DOH!

Modifications of my KE70 (or AE70)

• Engine: 4A-GE, adapted from 1984 GT Coupe Corolla (AE86). It has unfortunately TVIS and L-Jetronic. Output about 125 hp.
• Mandrel bent headers.
• Exhaust pipe is 2,5" in diameter and has two free-flow mufflers.
• Airfilter is Pipercross' free-flowing type.
• Gearbox is T-50 from an AE86.
• Front axle has coil-over struts with adjustable Koni-shocks and 175 lbs (about 3,13 kg/mm).
• There is 20mm aluminium spacers for providing sufficient wheel to strut clearance in front.
• Adjustable aluminium upper mounts with uniball-joints.
• Front brakes are from AE86, vented ones with standard brake pads and Russels braided steel hoses.
• Front axle has polyurethane bushings that are made by Energy suspensions.
• Rear axle is from TA40-Carina, because old one (from AE86 with LSD) gave up..
• Rear brakes are too from AE86, and have standard pads. Russell braided brakelines.
• Rear axle is supported with four lateral links (with stiff rubber bushes), same ones that are used in those Gr.F rallycars that aren't equipped with uniball-fourlink.
• The panhard rod is adjustable and has bushings that are manufactured by TRD.
• Rear sway bar is stiffer than standard bird-bone. It's manufactured by Addco. Urethane bushings.
• Rear shocks are Tokico Illumina adjustables and springs are from Lada Combi (a Russian passenger car).
• Summer wheels are 15" Exips with 195/45-15 tyres.

• Winter wheels are 14" from Mitsubishi Galant (Sigma) and tyres are shity M+S 195/60-14 ones.
• Alarm system is fitted, because Corollas are popular cars for thieves here.
• Sony RDS-stereo and 10 CD-box is the soundmachine.

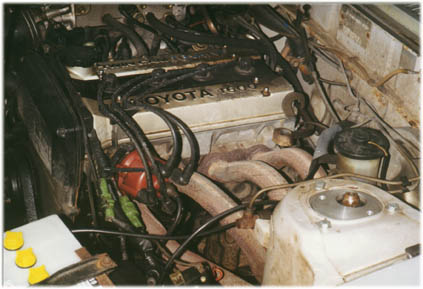

4A-GE is going to be replaced (soon?)

Engine bay isn't show detailed, but functional though.I am planning to change engine for more powerful version. Now i am collecting stuff to turbocharge my good old 4A-GE. I have bought a just serviced Garrett TO4/T3, and i am looking for the right stuff to ensure the durability (AE92's block&internals, ARP bolts, low CR forged pistons, HKS metal HG, Haltech box etc.). This far 4A-GE has been enough for my horsepower hunger -instead of original 65 hp 4K, even though it is able to burn some rubber :)

hits since 16th of Feb. 2000

Copyright by Tuomas Könönen, 2000.

For any suggestions, questions, mistakes in spelling or whatsoever, feel free to contact me by e-mail: tuomas.kononen@kolumbus.fi
