ACCELEROMETER PRODUCT LISTING

SURFACE MOUNT / SINGLE & MULTIPLE AXIS MODULES / COMPLETE DATA ACQUISITION SYSTEMS

The Products Listed here can also be directly compared in the Product Chart.

**Single Axis, Surface Mount Accelerometers:**
	» Hermetically Sealed, 20 Pin LCC or J-Lead » Small Size 0.350"sq. x 0.10" » Light Weight: 0.62 g (0.68g J-Lead) » +5V Operation Digital Model 1010 Digital Pulse Density Output Analog Model 1210 ±4V Differential or +4V Single Ended Output Low-noise Seismic Model 1221 ±4V Differential or +4V Single Ended Output Surface Mount Accessories: TB1010 Solder Mount Test Board TB1210 Solder Mount Test Board EB1010 Socketed Test Board

**Single Axis Accelerometer Modules:**
1.0"sq. x 0.3" Anodized Aluminum Case « Light Weight: 8 g « Digital Model 2010 Digital Pulse Density Output TTL/CMOS Compatible +5VDC Power Analog Model 2012 ±4V Differential or +4V Single Ended Output +5VDC Power Analog Model 2210 ±4V Buffered Differential or +4V Single Ended Output Internal Voltage Regulator & Reference +9 to +30VDC Power Single Axis Module Accessories: Model 2230** Orthogonal Mounting Block

**Triaxial Accelerometer Modules:**

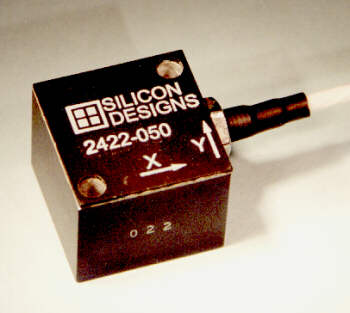

	» 0.985"sq. x 0.825" Anodized Aluminum Case » Weight: 30 g Digital Model 2420 Digital Pulse Density Output +5VDC Power 9-Pin D-Subminiature Connector Analog Model 2422 ±4V Differential or +4V Single Ended Output +5VDC Power Analog Model 2430** ±5V Single Ended Outputs ±11 to ±15VDC Power

**Triaxial Open Frame Accelerometer:**
1.2"sq. x 1.0" High « Light Weight: 16 g « Ribbon Cable Header « +5V Operation « Digital Model 2410 Digital Pulse Density Output Analog Model 2412 ±4V Differential or +4V Single Ended Output

**G-Logger^TM Data Acquisition System:**

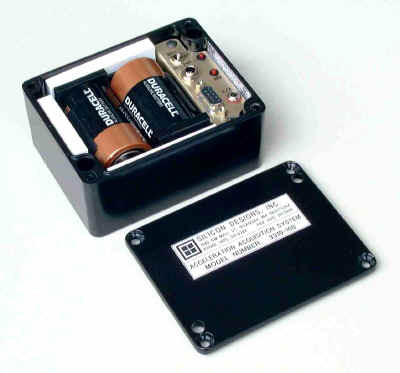

	» Connects to PC via Serial Port for Programming & Data Reporting » D-Cell Batteries allow up to 3 Weeks of Independent Operation » Logs Acceleration, Shock, Vibration, Velocity & Temperature » Programmable Data Capture: Timed, Continuous or Event Centered » 3.5" x 4.5" x 2.2" Water Tight, Die Cast Aluminum Case » Weight approx. 29 oz (incl. batteries) G-Logger Overview: Self Contained Model 3310 Integrated 3 Axis Accelerometer Remote Model 3320 Single Axis or Triaxial remote accelerometer(s) sold separately Model 3901 cable adaptor to connect 2010 to 3320
